SALE
EasySolar 12/1600/70-16 230V MPPT 100/50 CEP121621000

EasySolar 12/1600/70-16 230V MPPT 100/50 CEP121621000

Original price was: $2,608.10.Current price is: $2,371.00.

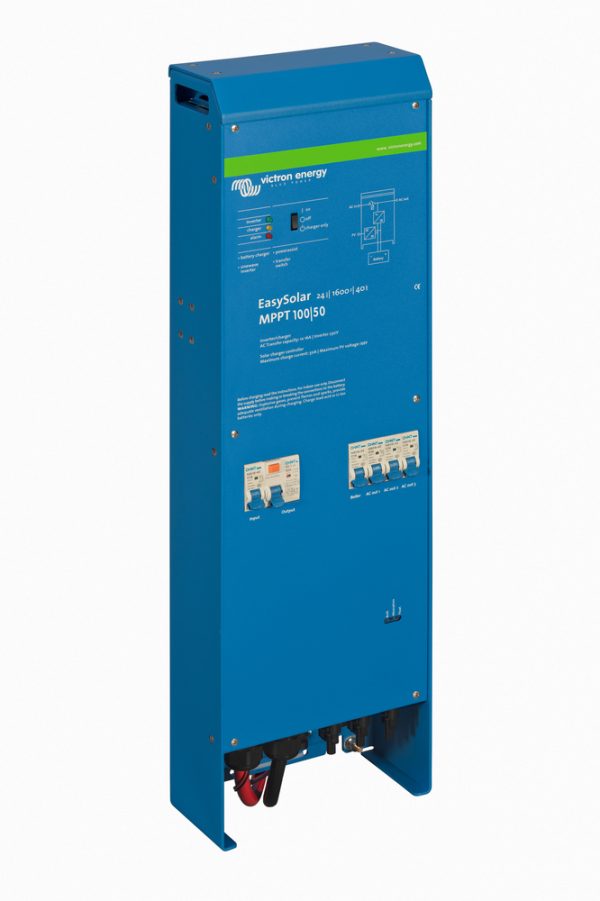

The EasySolar combines an MPPT Solar Charge Controller, inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.

EasySolar is an all-in-one solar power solution. It incorporates all the hardware, including circuit breakers and RCD, in a compact vertical cabinet:

Suitable for off-grid battery chemistries: lithium, AGM, GEL and lead acid batteries

Contact Budget Batteries for any friendly advice on your requirement.

Shipping Options

Description

FEATURES:

  • All-in-one solar solution: The EasySolar combines an MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
  • MPPT Solar charge controller: Blue Solar MPPT 100/50 Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
  • Easy to set-up: The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (SmartSolar MPPT) and/or AC power (inverter/charger) from the utility grid or a genset.
  • Complete with Circuit breakers and RCD: The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. In addition, one 16A output is controlled by the AC input: it will switch on only when AC is available.
  • Power Assist:  Unique PowerAssist technology protects the utility or generator supply from overload by adding extra inverter power when needed.
  • Solar application software:  Software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.
  • 5-Year warranty: Purchase with the confidence that this quality product is backed with a five-year replacement warranty.

APPLICATIONS:

  • Marine
  • Boats
  • RV’s
  • Caravans
  • Off Grid systems
  • Tiny houses
  • Cabins
  • Sheds

SPECIFICATIONS:

  • Brand:    Victron Energy
  • Model:    CEP121621000
  • System output voltage:    12V
  • Continuous inverter output:    1300W
  • Peak inverter power:    3000W
  • AC Charger input voltage:    230V
  • AC charge current:    70A
  • MPPT controller output:    50A
  • MPPT Maximum PV Voltage:    100V
  • MPPT Maximum PV power:    700W
  • Dimensions:    W214 x D110 x H745 (mm)
  • Weight:    15.0Kg
  • Warranty:    5 years

* Specification subject to change without notice

** Download the datasheet for complete specifications

Downloads
Model Inverter MPPT 100 / 50 AC Charger Dimensions (mm) Weight
Output System Voltage Continuous Output Power @ 25° Peak Inverter Power Maximum PV Open Circuit Voltage Maximum Output Current Maximum PV Power Input Voltage Amps Width Depth Height
Victron Easysolar Inverter Charger System
EasySolar 12/1600/70-16 230V MPPT 100/50 CEP121621000 12 Volt 1300W 3000W 100V 50A 700W 230V 70A 214 110 745 15.0Kg
EasySolar 24/1600/40-16 230V MPPT 100/50 CEP241621010 24 Volt 1300W 3000W 100V 50A 1400W 230V 40A 214 110 745 15.0Kg
Victron Easysolar-II Inverter Charger System GX
EasySolar-II 24/3000/70-32 MPPT 250/70 GX PMP242307010 24 Volt 2400W 5500W 250V 70A 2000W 230V 70A 268 237 499 26.0Kg
EasySolar-II 48/3000/35-32 MPPT 250/70 GX PMP482307010 48 Volt 2400W 5500W 250V 70A 4000W 230V 35A 268 237 499 26.0Kg
EasySolar-II 48/5000/70-50 MPPT 250/100 GX PMP482507010 48 Volt 4000W 9000W 250V 100A 5800W 230V 70A 323 253 604 38.6Kg
* Budget Batteries are an independent, locally owned and operated business.

Budget Batteries are an independent, locally owned and operated business

Additional information

Weight1.3 kg
Dimensions18.6 × 13.0 × .70 cm
